Spécifications
Écran tactile
6-inch LCD

Mémoire interne
4GDDR4 + 32G eMMC

DAC
ES 9038Q2M x 2

Processeur Audio
XMOS XU316

Ampli OP
OPA1612

Alimentation
Alimentation linéaire à faible bruit et de haute qualité

SSD Slot
M.2 NVME 3.0 2280 Interface Protocol, Supports up to 4TB

USB-A Ports
USB 3.0 x 2

Ethernet
RJ-45 (10/100/1000Mbps)

WiFi
WiFi 2.4G + 5G Dual-Band

Décodage
Supports up to Stereo DSD512, PCM 768KHz 32Bit, MQA Format

Services Musicaux
TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio Paradise, Deezer, SoundCloud, Presto Music, Apple Music…

Protocole Réseau
WebDAV, UPnP, NFS, SMB, Onedrive, Drop box, emby, Plex…

Streaming
Roon Ready, DLNA, TIDAL Connect…

Méthode de pilotage
Mobile App Control, Touchscreen Control, Tablet App Control,TRIGGER OUT,WOL

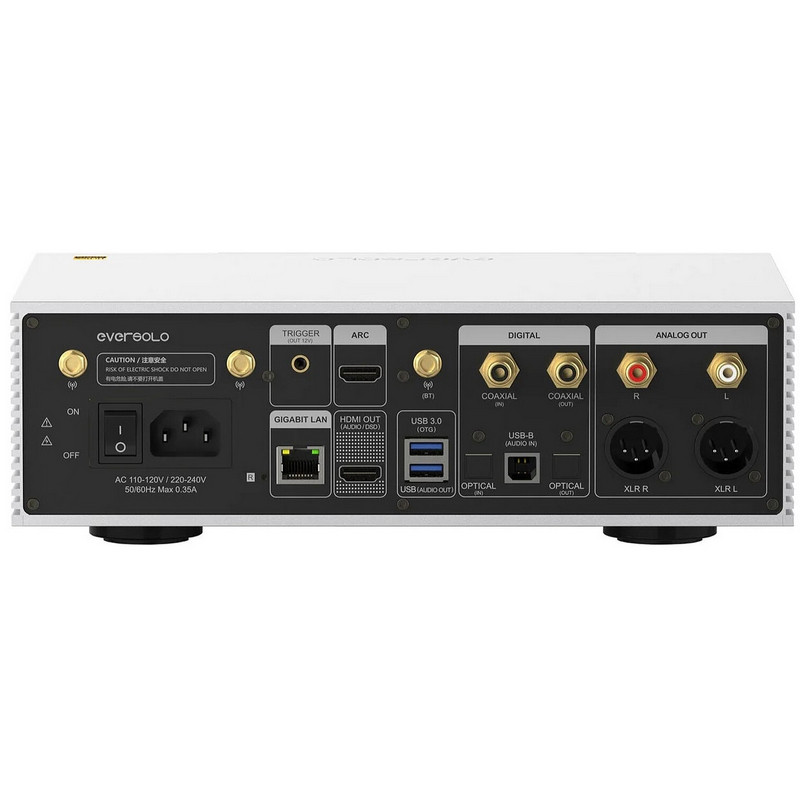

Connectivité
Bluetooth Audio
Bluetooth BT5.0, Supports SBC/AAC

Entrée USB-B
USB Audio Compatibility: Windows (10, 11), Mac, Android, iOS
Supports up to Stereo DSD512, PCM 768KHz 32Bit, MQA Format

Entrée Optical/Coaxial
Supports up to Stereo PCM 192KHz 24Bit, Dop64, MQA Format

Entrée HDMI ARC
Supports up to Stereo PCM 192KHz/24Bit

Sortie USB Audio
Supports up to Stereo DSD512 Native, PCM 768KHz 32Bit, MQA Format

Sortie HDMI Audio
DSD64 Native multichannel/PCM 192KHz multichannel raw output,up to 5.1

Sortie Optical/Coaxial
Supports up to Stereo PCM 192KHz 24Bit, Dop64, MQA Format

Sortie Analogique
Pre-output: XLR (Balanced) + RCA(UnBalanced)

Caractéristiques
Caractéristiques sorties XLR
Output Level: 5.2V
Frequency Response: 20Hz~20KHz (±0.15dB)
Dynamic Range: >128dB
SNR: >128dB @A-wt
THD+N: <0.000087%(-121dB)
Crosstalk: >-125dB

Caractéristiques sorties RCA
Output Level: 2.6V
Frequency Response: 20Hz~20KHz (±0.2dB)
Dynamic Range: >124dB
SNR: >124dB @A-wt
THD+N: <0.00011% (-119dB)
Crosstalk: >-124dB

Alimentation
AC 110~240V 50/60Hz Max 0.35A

Puissance
13 Watts

Dimensions
187 mm x 270 mm x 90 mm
