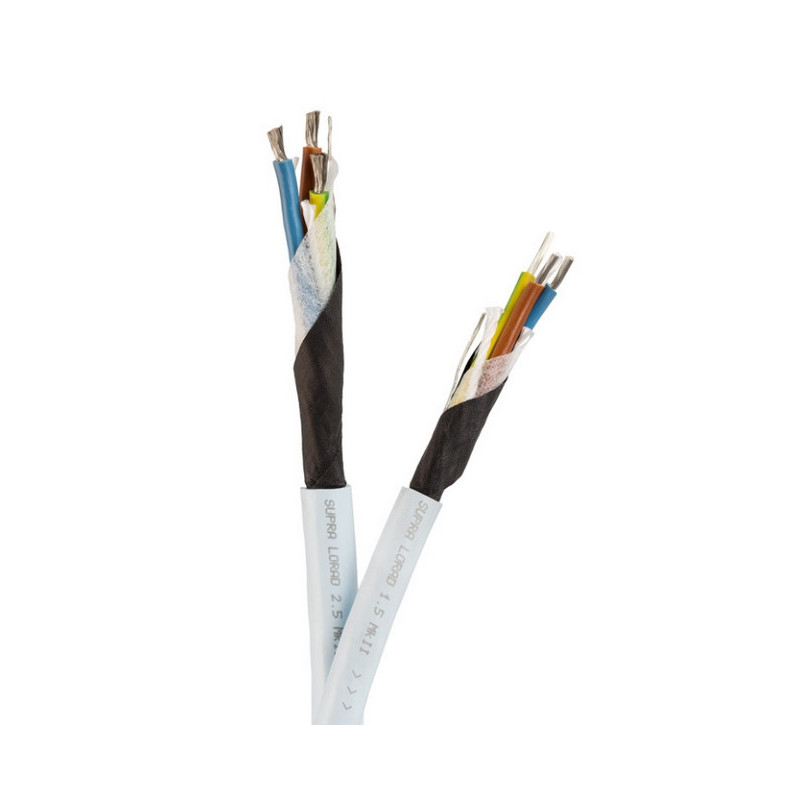

Supra S105, câble secteur 3x1.5mm² par 10 mètres
Câble vendu par longueur de 10m00
Câble secteur LoRad 3x1.5 mm² à monter.
Mechanical data
Standard Mains power flex with ground lead and high-end shield
Leads 3 x 1.5mm2, tin plated 5N oxygen-free copper
Number of strands 204 pieces
Strand dimension Ø 0.10 mm
Di-electric (insulation) Dual layer PVC. Lead identification; green/yellow, blue & brown.
Number of fillers/armoring Yarn, 3 pieces
Shield interconnection to ground Drain wire, ultra flexible, tin plated, 66 strands x Ø 0.07 mm OFC.
Armoring and insulation Woven polyester tape
Shield Woven semi-conductive Carbon/Nolyn tape
Jacket Age and heat resistant PVC
Outer dimension Ø 9.2 mm
Electrical properties
Resistance / conductor 10.8 Ohm / km
Nominal voltage 110 - 250 Volts
Maximal continuous current 10 Ampere
