FM SECTION :
USABLE SENSITIVITY: 11.25 dBF which is 1.0 μV across 75 ohms
50dB QUIETING SENSITIVITY:
Mono : 15 dBF which is 1.6 μV across 75 ohms
Stereo : 37 dBF which is 20 μV across 75 ohms
SIGNAL TO NOISE RATIO:
Mono : 80 dB
Stereo : 75 dB
FREQUENCY RESPONSE:
Mono : from 20 to 15,000 Hz (+ 0, -1dB)
Stereo : from 20 to 15,000 Hz (+0, - 1dB)
HARMONIC DISTORTION:
Mono :
0.08% at 100 Hz
0.08% at 1000 Hz
0.12% at 10,000 Hz
Stereo :
0.08% at 100 Hz
0.08% at 1000 Hz
0.12% at 10,000 Hz
INTERMODULATION DISTORTION:
Mono : 0.08%
Stereo : 0,12%
CAPTURE RATIO: 1.5 dB
ALTERNATE CHANNEL SELECTIVITY: 70 dB
SPURIOUS RESPONSE: 100dB
IMAGE RESPONSE: 80 dB
STEREO SEPARATION: 50 dB

AM SECTION :
SENSITIVITY: AM 20 μV external antenna input (50 ohm source input)
SIGNAL TO NOISE RATIO:
50 dB at 30% modulation
60 dB at 100% modulation
HARMONIC DISTORTION: 0.5% maximum at 30% modulation
FREQUENCY RESPONSE: 50 Hz to 6,000 Hz NRSC
ADJACENT CHANNEL SELECTIVITY: 45 dB minimum IHF
IMAGE REJECTION: 78 dB minimum
GENERAL INFORMATION

AUDIO OUTPUT :
Fixed: 1.2 V RMS at 100% modulation
Variable: 1.2 mV to 1.2 V at 100% modulation
SEMICONDUCTOR COMPLEMENT:
Transistors 37
Integrated Circuits 28
Varactors 8
LEDs 53
Diodes 74

POWER REQUIREMENT: 220V 50/60Hz
POWER CONSUMPTION: 10 watts

MECHANICAL INFORMATION :

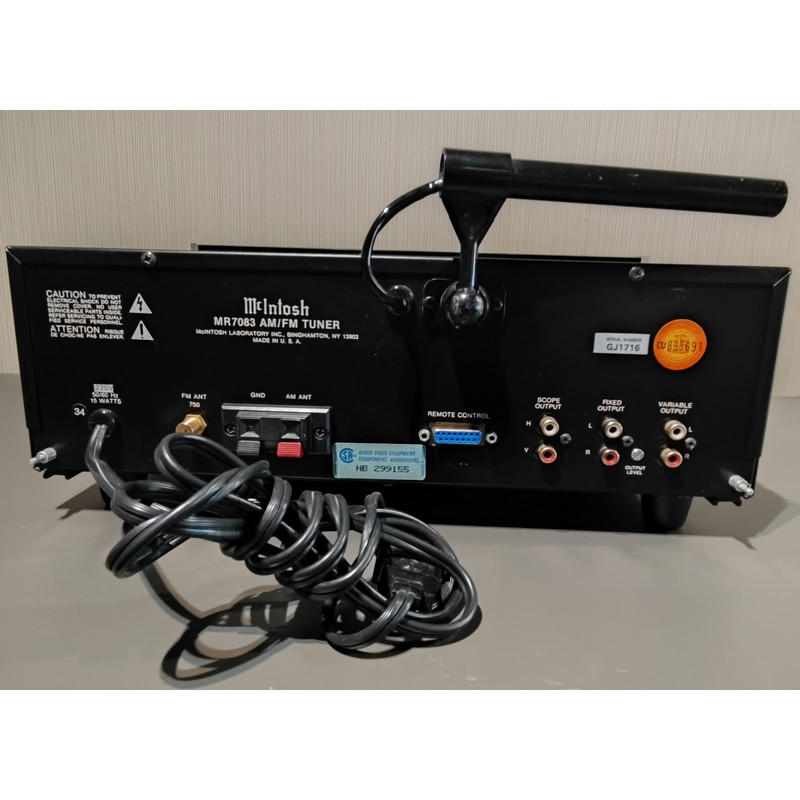

DIMENSIONS (W x H x D): 406 x 138 x 330 mm (16-1/8" x 5-7/16" x 13") from the mounting surface, including PANLOC shelf and back panel connectors.
Knob clearance required is 1-1/4 inches (3.2 cm) in front of the mounting panel.

FINISH :
Front panel is glass with special gold/teal nomenclature illumination and black with gold anodized aluminum.
Chassis is black.
